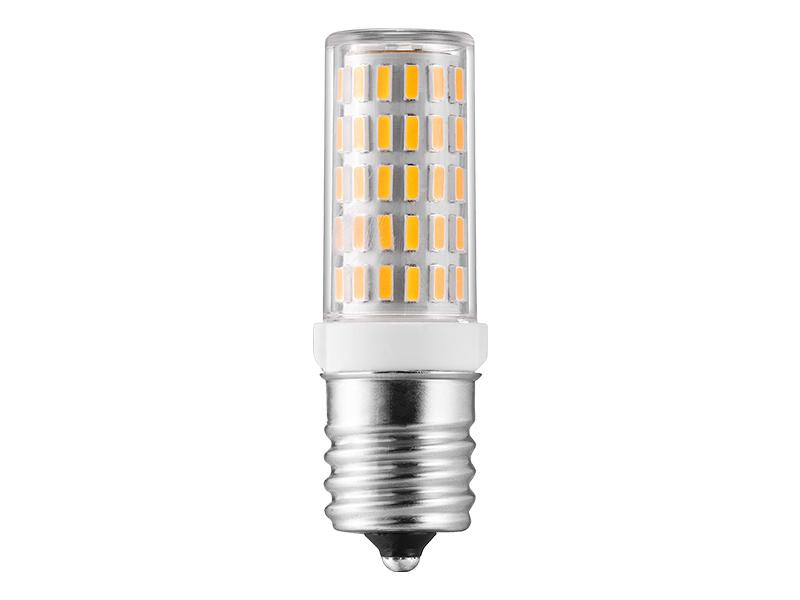

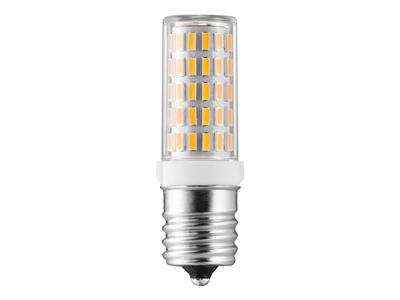

Application

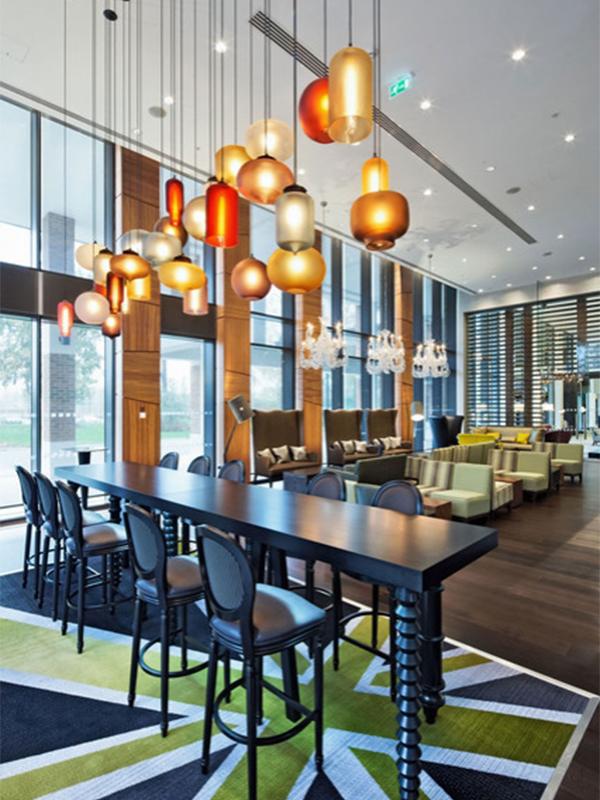

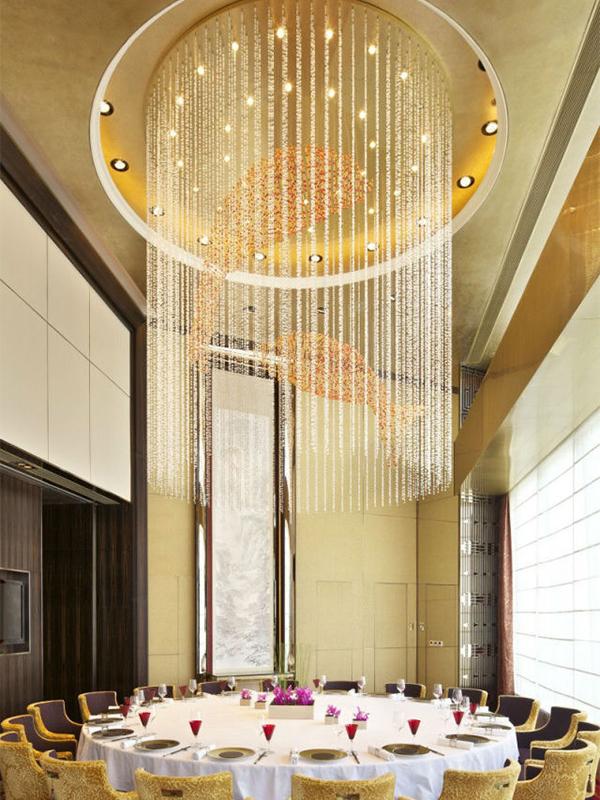

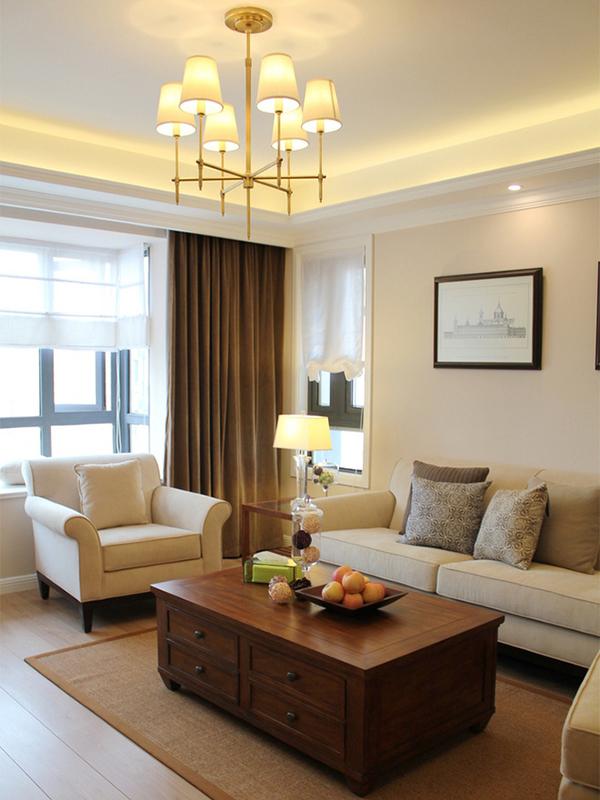

The color temperature of ceramic PC light fixture E14 LED corn bulb ranges from Warm White, Daylight White and Natural White. The LED light product is applicable in lighting sites such as malls, hotels, bars and residential housing.

Specification

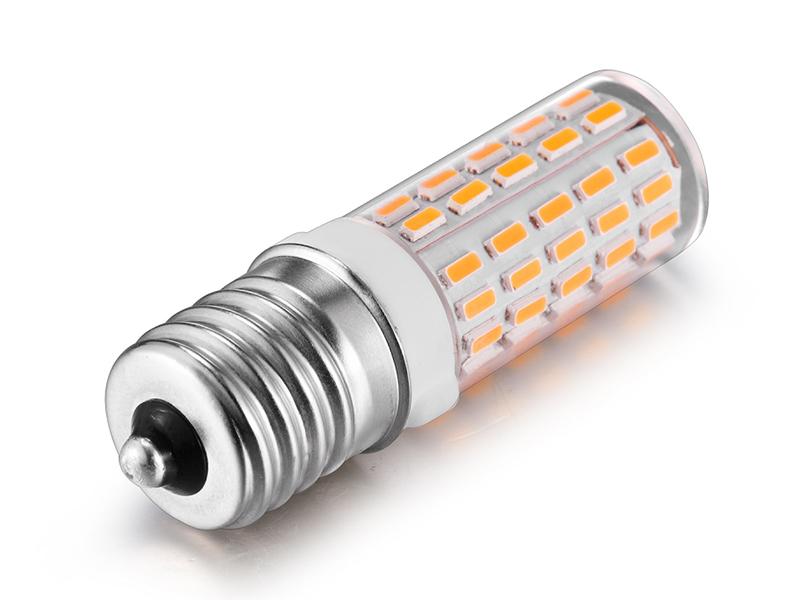

Finished product

Dimension diagram

Voltage

Material

Net weight

Luminous flux

Luminous efficacy

Actual power

Power factor

Beam angle

LED number

Dimmable

Remark

AC220 - 240V

Ceramics+PC

14.5g

210-230 lm

90-100 M/W

2.0-2.2W

＞0.48

360°

33x2835SMD

No

CRI≥80

Finished product

Dimension diagram

Voltage

Material

Net weight

Luminous flux

Luminous efficacy

Actual power

Power factor

Beam angle

LED number

Dimmable

Remark

AC220 - 240V

Ceramics+PC

17.7g

380-400 lm

90-100 M/W

4.2-4.4W

＞0.48

360°

51x2835SMD

No

CRI≥80

Finished product

Dimension diagram

Voltage

Material

Net weight

Luminous flux

Luminous efficacy

Actual power

Power factor

Beam angle

LED number

Dimmable

Remark

AC220 - 240V

Ceramics+PC

15.7g

310-330 lm

90-100 M/W

3.3-3.5W

＞0.48

360°

51x2835SMD

No

CRI≥80

Finished product

Dimension diagram

Voltage

Material

Net weight

Luminous flux

Luminous efficacy

Actual power

Power factor

Beam angle

LED number

Dimmable

Remark

AC220 - 240V

Ceramics+PC

22g

440-460 lm

90-100 lm/W

4.8-5.0W

＞0.63

360°

75x2835SMD

No

CRI≥80

Finished product

Dimension diagram

Voltage

Material

Net weight

Luminous flux

Luminous efficacy

Actual power

Power factor

Beam angle

LED number

Dimmable

Remark

AC110V / 220V

Ceramics+PC

20g

440-460 lm

90-100 lm/W

4.2-4.4W

＞0.63

360°

75x2835SMD

No

CRI≥80

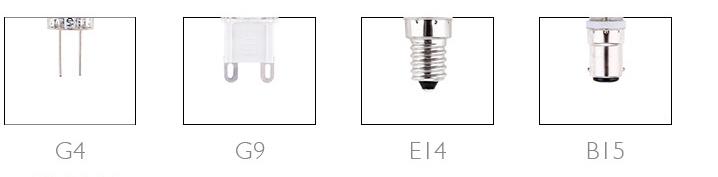

Lamp cap specification

Color temperature

Feature

1. Ceramic PC light fixture E14 LED corn bulb features fine heat radiation and high insulation.
2. The LED light bulb uses high brightness SMD LED beads as the light source, and therefore features low energy consumption, low luminous decay, small heat emission and a long service life of 30 to 50 thousand hours.
3. Ceramic PC light fixture E14 LED corn bulb generates gentle light, enjoys high luminous efficacy, is lit instantly after turning on, and bears no strobe or light spots so that the product can protect customers' eyes effectively.
4. The LED light bulb contains no mercury, generates no EMI radiation, and is environment friendly.

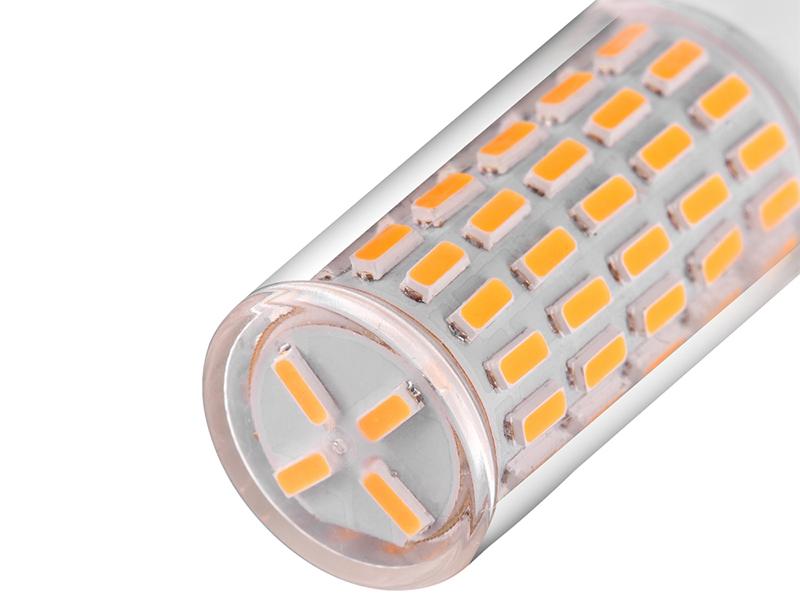

5. Ceramic PC light fixture E14 LED corn bulb applies high transparency silica gel sealing to achieve a 360 degrees illumination with no blind angles as well as high luminous power and enhanced brightness.
6. The LED light bulb adopts linear constant current intelligent IC to effectively protect the LED and promote stability.
7. Ceramic PC light fixture E14 LED corn bulb has high luminous power and outstanding color rendering property, and suffices to replace the traditional halogen lamps and filament lamps.

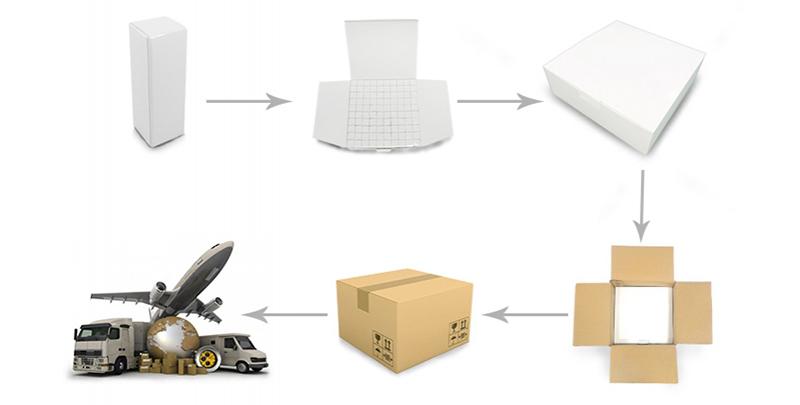

Packaging style

Shunfa is a reliable E14 LED bulb and SMD LED manufacturer, ceramic polycarbonate light fixture E14 LED corn bulb supplier, offers all kinds of bin-pin LED bulbs and SMD LED bulbs for home lighting, commercial lighting, hotel lighting, etc. Fully equipped with surface mount and silicone encapsulation equipment, we provide quality E14 LED light bulbs with custom service.
