Application

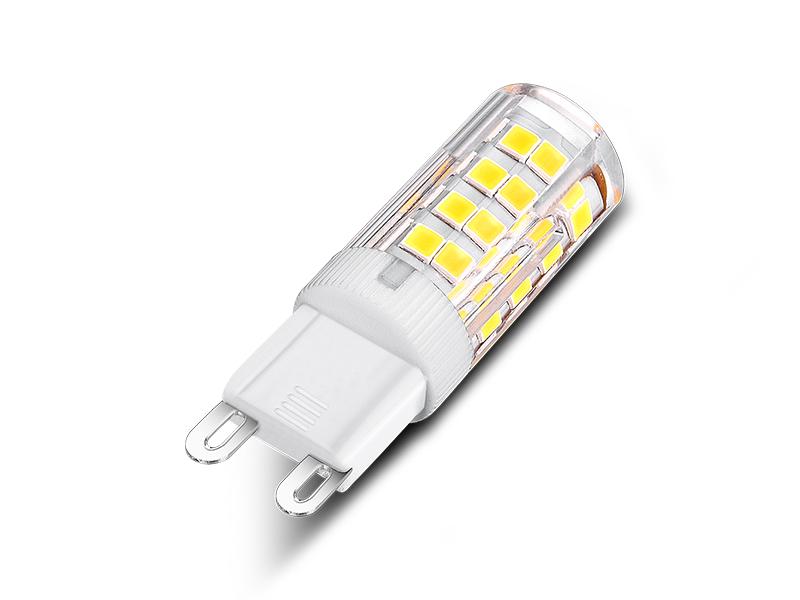

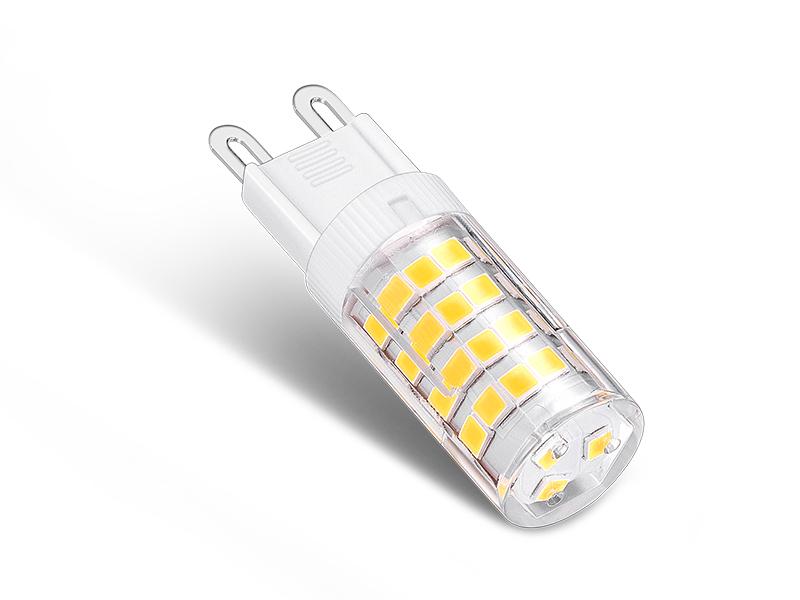

The color temperature of ceramic PC fixture G9 LED corn bulb ranges from Warm White, Daylight White and Natural White. The LED light product is applicable in lighting sites such as malls, hotels, bars and residential housing.
Specification
G9-2835-27LED AC220V G9 LED Corn Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC 220V | PC+ceramics | 10g | 230-260 lm | 100-110 lm/W | 2.1-2.4W | =0.3 | 360° | 27LED*2835 | No | CRI≥80 |
G9-2835C-33LED AC220V G9 SMD LED Corn Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC220 - 240V | Ceramics+PC | 10.8g | 210-230 lm | 90-100 lm/W | 2.3-2.5W | ＞0.35 | 360° | 33x2835SMD | No | CRI≥80 |
G9-2835C-39LED AC110V G9 SMD LED Corn Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC110 - 130V | Ceramics+PC | 11.7g | 180-200 lm | 60-70 lm/W | 2.8-3.0W | ＞0.9 | 360° | 39x2835SMD | Yes | CRI≥80 |
G9-2835CD-51LED/PAC110/220V G9 SMD LED Corn Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC110 / 220V | Ceramics+PC | 12g | 310-330 lm | 90-100 lm/W | 3.3-3.5W | ＞0.9 | 360° | 51x2835SMD | Yes | CRI≥80 |
G9-2835C-51LED/AAC220V G9 SMD LED Corn Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC220 - 240V | Ceramics+PC | 13.8g | 380-400 lm | 90-100 lm/W | 4.2-4.4W | ＞0.48 | 360° | 51x2835SMD | No | CRI≥80 |
G9-2835C-51LED/BAC110/220V G9 SMD LED Corn Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC110V / 220V | Ceramics+PC | 12g | 310-330 lm | 90-100 lm/W | 3.3-3.5W | ＞0.55 | 360° | 51x2835SMD | No | CRI≥80 |
G9-2835C-51LED/CAC220V G9 SMD LED Corn Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC220 - 240V | Ceramics+PC | 12g | 330-350 lm | 90-100 lm/W | 3.6-3.8W | ＞0.48 | 360° | 51x2835SMD | No | CRI≥80 |
G9-2835-52LEDAC 220V G9 SMD LED Corn Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC100 - 265V | PC+Ceramics | 12g | 380lm | 380lm/W | 3W | =0.4 | 360° | 52x2835SMD | No | CRI≥80 |
G9-2835C-75LED/AAC220V G9 SMD LED Corn Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC220 - 240V | Ceramics+PC | 18g | 440-460 lm | 90-100 lm/W | 4.8-5.0W | ＞0.63 | 360° | 75x2835SMD | No | CRI≥80 |
G9-2835C-75LED/BAC110/220V G9 SMD LED Corn Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC110V / 220V | Ceramics+PC | 15g | 400-420 lm | 90-100 lm/W | 4.2-4.4W | ＞0.63 | 360° | 75x2835SMD | No | CRI≥80 |
G9-1505B-1xLED/AAC110V/220V G9 COB LED Corn Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC110V / 220V | Silica gel | 6.5g | 160-180 lm | 90-100 lm/W | 1.7-1.8W | ＞0.9 | 360° | 1x1505COB | Yes | CRI≥80 |
G9-1508-1xLED/A=AC110V/220V G9 LED Corn Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC110 or 220V | Ceramics+PC | 7.2g | 220-250lm | 100-110 lm/W | 2.5W | =0.95 | 360° | 1x1508COB | Yes | CRI≥80 |
G9-2508-1xLED/AAC110V/220V G9 SMD LED Corn Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC110 or 220V | PC cover+ceramics | 8.4g | 280-320lm | 100-110lm/W | 3.0-3.3W | =0.9 | 360° | 1x2508COB | Yes | CRI≥80 |
G9-2609B-1xLED AC110V/220V G9 COB LED Corn Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC110V / 220V | Silica gel+PC | 10.1g | 240-260 lm | 90-100 lm/W | 2.3-2.5W | ＞0.93 | 360° | 1x2609COB | Yes | CRI≥80 |
G9-4LED-2W AC110V/220V G9 COB LED Corn Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC110V / 220V | Ceramics+PC | 7.1g | 200-220 lm | 110-120 lm/W | 1.8-2.1W | ＞0.9 | 360° | 4x25mmCOB | Yes | CRI≥80 |
G9-4LED-3W AC110V/220V G9 COB LED Corn Bulb
| Finished product | Dimension diagram | Voltage | Material | Net weight | Luminous flux | Luminous efficacy | Actual power | Power factor | Beam angle | LED number | Dimmable | Remark |
 |  | AC110V / 220V | Ceramics+PC | 8.7g | 380-400 lm | 120-130 lm/W | 3.0-3.2W | ＞0.9 | 360° | 4x40mmCOB | Yes | CRI≥80 |
Lamp cap specification
Color temperature
-
Warm White (2800~3000K)
-
Natural White (4000~4500K)
-
Daylight White (6000~6500K)
Feature
1. Ceramic PC fixture G9 LED corn bulb features fine heat radiation and high insulation.
2. The LED light bulb uses SMD LED beads as the light source to achieve low energy consumption, low luminous decay, small heat emission and a long service life of 30 to 50 thousand hours.
3. Ceramic PC fixture G9 LED corn bulb generates gentle light, enjoys high luminous efficacy, is lit instantly after turning on, and bears no strobe or light spots so that the product can protect customers' eyes effectively.
4. The LED light bulb contains no mercury, emits no electromagnetic interference radiation, and practices environmental friendliness.
5. Ceramic PC fixture G9 LED corn bulb applies high transparency silica gel sealing to the lamp body to achieve novel structure and pleasing appearance.
6. The LED light has high luminous power and outstanding color rendering property, and suffices to replace traditional halogen lamps and filament lamps.
7. The lamp cap of ceramic PC fixture G9 LED corn bulb is of G9 model. The LED light product is thus easy to install and becomes a ideal option to replace traditional halogen lamps and filament lamps.
Packaging style
Shunfa is a reliable G9 LED bulb and SMD LED manufacturer, ceramic polycarbonate fixture G9 LED corn bulb supplier, offers all kinds of bin-pin LED bulbs and SMD LED bulbs for home lighting, commercial lighting, hotel lighting, etc. Fully equipped with surface mount and silicone encapsulation equipment, we provide quality G9 LED light bulbs with custom service.
